Configuration

Configuration comes from three layers, lowest precedence first:

1. Defaults in backend/app/config.py (Settings, loaded via pydantic-settings from the environment and .env)
2. Persisted app settings and database rows (agent configs, diarization and transcription runtime config) edited through the Admin panel
3. Per-session agent overrides

Environment variables

Variable	Default	Purpose
GEMINI_API_KEY	empty	Google API key fallback when no encrypted credential is stored
OPENAI_API_KEY	empty	OpenAI API key fallback
OPENAI_BASE_URL	https://api.openai.com/v1	Base URL for every OpenAI-shaped chat call; the persisted llm.openai_compatible.base_url app setting overrides it for the openai-compatible provider only
OPENAI_COMPATIBLE_API_KEY	empty	Optional key for the legacy openai-compatible provider; local servers need none
OPENAI_COMPATIBLE_MODEL_ID	empty	Wire model name for the legacy openai-compatible provider; the llm.openai_compatible.model_id app setting takes precedence
LLM_TIMEOUT_SECONDS	120	Ceiling for a hosted chat-completions reply
LLM_SELF_HOSTED_TIMEOUT_SECONDS	900	Ceiling for a self-hosted reply, which can take minutes on CPU
LLM_SELF_HOSTED_MAX_TOKENS	8192	Completion budget sent to self-hosted servers, so long replies are not truncated at the server’s own default
DATABASE_URL	postgresql+asyncpg://callhelper:changeme@db:5432/callhelper	Async SQLAlchemy connection string; set by Docker Compose for the backend container
FRONTEND_DIST	empty	Path to a built frontend for the backend to serve directly (the desktop launcher sets it); empty means nginx serves the frontend (Docker)
DATA_DIR	/app/data	Root for recorded audio, downloaded ASR models, and the credentials master key; a named Docker volume (backend_data) in Compose
BACKCHANNEL_FFMPEG	empty	Explicit path to the ffmpeg executable used for compressed-audio decoding; the desktop launcher sets it to the bundled copy on Windows and Linux, and PATH lookup is the fallback
POSTGRES_USER / POSTGRES_PASSWORD / POSTGRES_DB	callhelper / changeme / callhelper	Consumed by the db container and interpolated into DATABASE_URL in Compose
CREDENTIALS_MASTER_KEY	auto-generated	Overrides the Fernet master key used for encrypted credentials
CREDENTIALS_MASTER_KEY_PROTECTION	empty (dpapi on the Windows desktop build)	dpapi wraps DATA_DIR/master.key with Windows DPAPI so only the same Windows user on the same machine can read it; a plaintext file is upgraded in place on first read
BACKCHANNEL_ALLOWED_HOSTS	empty	Extra hostnames the API accepts in the Host header, comma-separated. Loopback names, any IP address, and the Compose service name are always accepted; a request for any other name is refused (DNS-rebinding defense). * disables the check
BACKCHANNEL_ALLOWED_ORIGINS	empty	Extra browser origins (https://tools.example) allowed to call the API cross-origin, also granted by CORS. Local origins are always allowed; a state-changing request from any other origin is refused. * disables the origin check

DATA_DIR, BACKCHANNEL_FFMPEG, CREDENTIALS_MASTER_KEY, CREDENTIALS_MASTER_KEY_PROTECTION, BACKCHANNEL_ALLOWED_HOSTS, and BACKCHANNEL_ALLOWED_ORIGINS are read straight from the process environment (os.environ), not through the pydantic Settings object, so they must be set as real environment variables; in Compose the backend’s env_file: .env makes a .env entry reach them, but a bare local run needs them exported.

Copy .env.example to .env as a starting point; it contains only commented-out entries for GEMINI_API_KEY, the Sortformer PYTORCH_INDEX_URL, and the database settings. Other variables, including OPENAI_API_KEY, must be added by hand.

API credentials

Provider keys (google, openai) should be set in Admin -> Connections, which stores them encrypted with Fernet (backend/app/routers/credentials.py). The master key is auto-generated at DATA_DIR/master.key on first use, or supplied via CREDENTIALS_MASTER_KEY. Environment variables remain fallbacks when no credential row exists for a provider. POST /api/credentials/{provider}/test validates a stored key with a real provider call.

What the app does to keep a stored key from getting out:

• No API response ever carries a key or its ciphertext. The credentials and endpoints listings report only whether a key exists plus the last four characters; endpoint rows carry has_api_key, never the value.
• Keys travel to providers in request headers, never in URLs, and every log record in the process is scrubbed of registered key values and key-shaped text (bearer tokens, x-goog-api-key, ?key= parameters, URL userinfo, AIza... / sk-... prefixes) before any handler writes it. Provider error text shown in Admin or stored on an endpoint row is scrubbed the same way.
• The API has no login, so the server refuses requests whose Host is not a local name or address and state-changing requests from a foreign browser Origin; see BACKCHANNEL_ALLOWED_HOSTS and BACKCHANNEL_ALLOWED_ORIGINS above for deployments reached by another name.
• The Docker stack publishes the backend and database ports on loopback only; the frontend on :3000 is the only LAN-reachable surface.

Transcription and audio

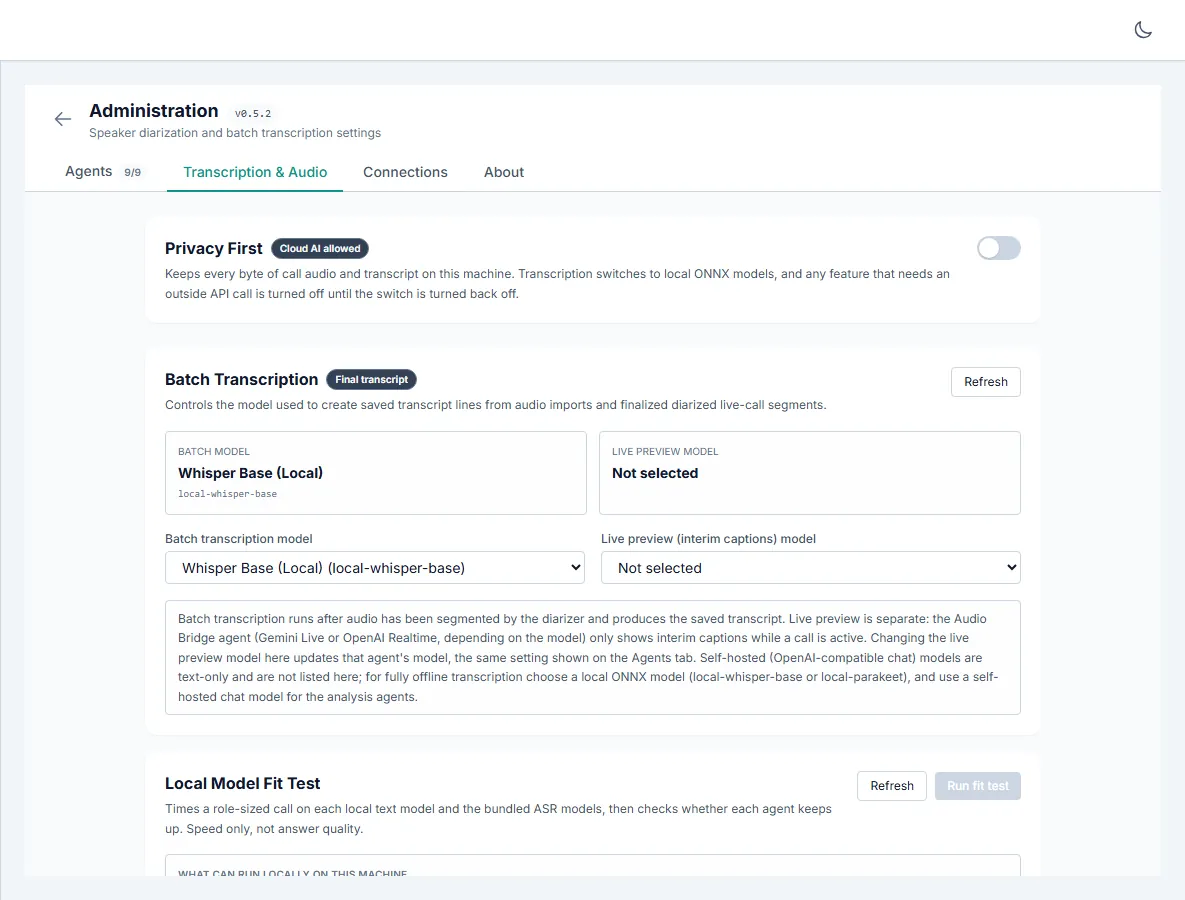

Transcription model, batch behavior, and audio handling are set in Admin -> Transcription & Audio. The live-caption model on this tab is the audio gateway agent’s model: PATCH /api/diagnostics/transcription/config with live_preview_model_id writes the same audio_gateway AgentConfig row that Admin -> Agents edits (backend/app/services/transcription_runtime.py).

Meeting language

The Meeting language picker on the same tab sets one workspace-wide language for transcription, stored as the transcription.language app setting (PATCH /api/diagnostics/transcription/config with language). It is either auto (the default) or an ISO 639-1 code from the list in backend/app/services/transcription_language.py. An unknown code is rejected with HTTP 400.

Each transcriber that can use the language receives it:

Path	How the language is sent
Local Whisper (local-whisper-base, local-whisper-large-v3-turbo)	onnx-asr recognize(..., language=code)
Local Parakeet v2 (local-parakeet-tdt-0.6b, local-parakeet-live)	Not sent: English-only
Local Parakeet v3 (local-parakeet-tdt-0.6b-v3, local-parakeet-v3-live)	Not sent: detects which of its 25 European languages is spoken
Gemini batch, OpenAI chat audio	A sentence in the transcription prompt naming the language
OpenAI /v1/audio/transcriptions	The language form field
Gemini Live captions	AudioTranscriptionConfig(language_codes=[code])
OpenAI Realtime captions	language in the session’s audio.input.transcription

With auto, nothing is sent and each provider detects the language itself. Models transcribe in the language spoken and never translate, so a speaker who switches languages mid-call keeps their own words. The setting applies when a call starts or resumes and to every audio import or re-transcription after the change.

Privacy First (local-only) mode

The Admin panel has a “Privacy First” switch (GET/PUT /api/privacy, persisted as the privacy.local_only app setting). While it is on, no call audio or transcript text leaves the machine:

• Batch transcription is coerced to a local ONNX model (local-whisper-base by default) for live segments, audio imports, and re-transcription; selecting a cloud transcriber is rejected.
• The audio gateway (interim captions) is skipped unless it is set to an on-device captioner (local-parakeet-live for English, local-parakeet-v3-live for 25 European languages), which transcribes short chunks with local Parakeet ONNX and needs no cloud call. The cloud gateways (Gemini Live, OpenAI Realtime) are always skipped.
• Analysis agents are skipped unless they are pointed at a model served by a self-hosted endpoint on your own machine or network (see below). The gate is allows_local_only() in backend/app/services/privacy.py: it admits the bundled ONNX models and any endpoint model whose base URL resolves to loopback, a private network, a single-label LAN hostname, a .local / .internal / .lan / .home.arpa name, or host.docker.internal. An endpoint reachable only over the public internet is treated as cloud even though it speaks the same protocol, because it may be a hosted inference provider.
• generate_text raises LocalOnlyModeError for any model that fails that test, so post-import analysis, meeting chat, insight enhancement, and document summarization return HTTP 409/400 with an explanatory message.
• Startup provider key verification is skipped.

With an on-prem text endpoint configured, Privacy First and the analysis agents are no longer mutually exclusive: the agents keep working and no call data leaves your perimeter. An agent left on a cloud model while the mode is on does not run; the Admin panel badges it and names the fix, and the live call status says which agents are paused, so a quiet call is never the first sign of it.

Speaker diarization, session recording, file imports, and exports already run locally and are unaffected. Turning the switch off restores the previously selected cloud models. The enable flow in the UI shows the full list of features that stop working before the mode is applied (privacy_impact() in backend/app/services/privacy.py).

PII Shield (tokenized personal data)

Privacy First decides where processing happens; the PII Shield decides what any model, local or cloud, gets to read. It lives in Admin -> Privacy (GET/PUT /api/pii-shield, persisted as the pii.shield app setting, off by default) and is implemented in backend/app/services/pii/.

Encode at ingress. Every path that writes human text passes it through shield.protect_text before the row exists: live transcript segments (ws/audio_handler.py), transcript and audio imports and re-transcription (routers/imports.py), manual entries, directives (REST and the mid-call WebSocket message), session name, notes and meeting context, speaker names (shield.protect_name: a speaker’s name is a person’s name by definition), the local document excerpt, the typed question in Ask and the user turns in Chat. Because the stored text is already tokenized, every prompt builder (the analyst, objection handler, synthesizer, strategic signals, briefing, chat, ask, speaker-context enhancement) is clean by construction and needed no change.

Tokens are [CATEGORY_n] ([PERSON_1], [EMAIL_2], [ORG_1]) and are numbered per session: the same value gets the same token within a session, so a model can follow referents across a call, while nothing links a person across sessions. Categories: PERSON, ORG, LOCATION (off by default), EMAIL, PHONE, SSN, CARD (Luhn-checked), IP, ADDRESS.

Detection is layered and entirely on-device:

• pattern recognizers for the structured categories (services/pii/recognizers.py);
• the session’s roster matched as whole words: its speakers, the workspace protected-terms list (client companies, code names), and every person, organization and place the session’s vault already holds, so a name caught once is caught on every later line even without the model; each capitalized part of a multi-word name maps to the same token;
• introductions (“my name is”, “this is”) for people;
• optionally Xenova/bert-base-NER (the CoNLL-2003 BERT NER model as a quantized ONNX file, about 110 MB) with a WordPiece tokenizer implemented in services/pii/ner.py, downloaded once into DATA_DIR/pii-models/ and run with the onnxruntime already shipped for diarization. When it cannot be fetched the shield keeps working with the other layers and the status says so.

The download is visible while it happens: the Privacy tab shows its progress and /api/model-downloads reports it to any client, so a slow first fetch reads as a download rather than a stall. Nothing on the ingest path waits for it. If the weights are absent, still arriving, or known to have failed, text is protected by the pattern and roster layers and detection carries on; the model joins in once it has loaded. Before v0.6.2 the loader held one lock across the fetch and a wedged download blocked every protected write in the app, session creation included (ALP-373).

The vault (services/pii/vault.py, table pii_vault_entries) stores each value Fernet-encrypted under a key derived with HKDF from the credentials master key (secrets.derive_subkey), with a keyed HMAC of the normalized value for lookup, so the table reveals neither values nor whether two sessions share one.

Decode only at the edge, from exactly three surfaces: PiiRevealMiddleware (every session-scoped JSON response and the session list, through shield.reveal_payload), RevealingWebSocket (every live message, through vault.reveal_map and shield._walk), and the exports and /api/chat, which are not session-scoped in the path and so call shield.reveal_text directly. Nothing under services/agents or services/llm.py decodes at all, which is the invariant worth grepping for before a release. Exports carry tokens unless ?reveal=1 is passed (the Export menu’s “Include personal data” box). Every reveal appends a row to pii_reveal_events (session, route, token count); the Privacy tab shows the last 24 hours.

Audio is enforced, not advised. Audio cannot be tokenized, so while the shield is on transcription_runtime.audio_lock_reason locks audio to local models the way Privacy First does, but for audio alone: the batch transcriber is coerced to local-whisper-base when a cloud one is configured and the setters reject a cloud choice; the orchestrator skips a cloud live-caption gateway (blocked reason pii_shield, shown as “Live captions off: PII Shield” in the live activity panel) and admits only the on-device captioner. Cloud text models stay allowed because they receive tokens only. With the shield on, document upload takes the local extraction path and never sends the file. shield.status reports each row honestly, including a cloud gateway that is configured but paused.

Transcript refinement closes the quality gap that local-only audio opens. The transcript_refiner agent (off by default; Admin -> Agents, any text model, local or cloud, interval default 45s) sends the tokenized text of recent entries to its model to fix punctuation, casing, sentence boundaries and obvious mishearings, and writes the result back to transcript_entries with the transcriber’s text kept in raw_text and refined_at set. A rewrite is accepted only when it carries exactly the same multiset of tokens as the original and stays within a length band (services/transcript_refiner.py, accept_refinement), so a model can never drop, invent or renumber a token. It runs as a live interval agent (browser gets transcript_updated messages), as the first drain stage at call end, and before post-import analysis.

Because it only ever reads tokenized text – the stored entry text, and speaker labels protect_name tokenized the same way – the Privacy tab reports refinement as covered whenever the shield is on, on any model, local or cloud. Whether the agent is enabled is a detail line under that row, not the badge: driving a red “not covered” off an optional quality agent’s switch reported a privacy gap where there was none (ALP-366).

Two ways to see that it works. The prompt log (prompt_log in the shield settings, “Record outbound prompts” on the Privacy tab) appends every prompt to DATA_DIR/prompt-log/outbound.jsonl exactly as it leaves for a model, with source, model and session; GET /api/pii-shield/egress lists the newest entries and the Privacy tab shows them with a “tokens only” or “blocked” badge. It is written raw, bypassing the log scrubber, because a scrubbed record could not show a leak; it never leaves the machine and DELETE /api/pii-shield/egress removes it. Independently of the log, while the shield is on every text prompt passes an egress tripwire (services/pii/egress.py, called from generate_text and generate_json): a prompt still carrying a value the vault has seen in plaintext is refused before it is sent (HTTP 409 PiiEgressBlocked, an audit row with route egress-blocked:<source>), so a gap upstream costs one model call rather than one disclosure. The transcribers log segment lengths, never words, because the shield has not seen a segment when it is transcribed.

Per-session endpoints: GET /api/sessions/{id}/pii/summary (counts, no reveal), GET /api/sessions/{id}/pii (the ledger with values; audited), and POST /api/sessions/{id}/pii/protect to run the encode path over a session recorded before the shield was on. POST /api/pii-shield/preview shows what a sentence turns into without touching the vault.

Self-hosted endpoints

Any number of OpenAI-shaped chat servers can be registered in Admin -> Connections -> Self-Hosted Models: LM Studio (http://localhost:1234/v1), Ollama (http://localhost:11434/v1), vLLM, LiteLLM, or a shared GPU box on the LAN. Each endpoint is a row in the custom_endpoints table holding a name, base URL, optional Fernet-encrypted API key, and the list of models it serves.

Every listed model becomes a first-class registry entry with the id endpoint:<endpoint slug>:<served model name> (for example endpoint:lm-studio:antares-1b), so it appears by name in the agent, transcription, and meeting-chat pickers, grouped under the endpoint’s name. llm.provider_for() recognizes the endpoint: prefix and routes the call to the OpenAI dialect without a database read; resolve_endpoint() then loads that endpoint’s base URL, wire model name, and key.

REST surface (backend/app/routers/endpoints.py):

Route	Purpose
GET /api/endpoints	List endpoints, their models, and last test result
POST /api/endpoints	Add an endpoint
PUT /api/endpoints/{id}	Patch it; an empty api_key clears the stored key
DELETE /api/endpoints/{id}	Soft delete: the row is tombstoned (deleted_at set, stored key cleared), not removed
POST /api/endpoints/{id}/test	Probe {base_url}/models and record the outcome
POST /api/endpoints/probe	Probe an unsaved URL and list what it serves

No API key is required: requires_key is None for these models and no Authorization header is sent at all when the endpoint has no key, since an empty bearer token breaks some servers rather than being ignored.

PUT /api/endpoints/{id} guards the privacy boundary: moving an endpoint from an on-prem base URL to an off-prem one is refused outright while Privacy First is on, and without Privacy First it requires confirm_off_prem=true, because the change can send call data outside the machine or network (update_endpoint() in backend/app/services/custom_endpoints.py).

Running Backchannel in Docker? Inside the container localhost is the container, not your machine. Use http://host.docker.internal:1234/v1 to reach a server running on the host.

Legacy single-endpoint settings

Before named endpoints, one OpenAI-compatible server was configured through the llm.openai_compatible.base_url and llm.openai_compatible.model_id app settings, with OPENAI_BASE_URL and OPENAI_COMPATIBLE_MODEL_ID as environment fallbacks, and surfaced as a single openai-compatible registry entry. That configuration is migrated to a named endpoint on first startup (migrate_legacy_endpoint()), agents using the placeholder are repointed at the migrated model, and the placeholder is then hidden. Installs configured purely through the environment variables keep the placeholder and keep working.

Settings reference (backend/app/config.py)

Models

Setting	Default	Meaning
GEMINI_MODEL	gemini-3.1-flash-live-preview	Seeded default for the live audio gateway
BATCH_TRANSCRIBER_MODEL	gemini-3.5-flash-lite	Fallback batch transcription model; the persisted transcription.batch.model_id app setting takes precedence
REFINEMENT_MODEL	gemini-3.5-flash	Fallback text model, used only when the owning agent row has no model set. Post-import Analyze takes its model from the Consolidated Analyst row and Enhance Insights takes its from the Principal Agent row, so on a seeded install this default is not reached
REFINEMENT_INTERVAL_SECONDS	45	Refinement cadence

Agent timing

Setting	Default	Meaning
TEXT_AGENT_INTERVAL_SECONDS	40	Consolidated analyst cycle
OBJECTION_HANDLER_INTERVAL_SECONDS	10	Objection handler fast scan cycle
OBJECTION_WINDOW_SECONDS	90	Transcript window for objection scans
SYNTHESIZER_COOLDOWN_SECONDS	75	Minimum time between synthesizer runs
OPPORTUNITY_SPECIALIST_COOLDOWN_SECONDS	55	Batch window for the opportunity specialist
KNOWLEDGE_CONTEXT_CHAR_BUDGET	60000	Max characters of knowledge context per prompt

Per-agent interval values stored in agent_configs rows override these defaults (see Agent System).

Diarization

Setting	Default	Meaning
LIVE_DIARIZER	lightweight	Diarizer implementation (lightweight VAD+embeddings, or Sortformer on GPU)
VAD_THRESHOLD	0.6	Silero speech probability threshold
MIN_SEGMENT_MS	750	Minimum speech segment length
MAX_SEGMENT_MS	15000	Maximum segment length before a forced cut
SILENCE_GAP_MS	600	Silence gap that closes a segment
SPEAKER_SIMILARITY_THRESHOLD	0.68	Embedding similarity to match an existing speaker
SPEAKER_COHERENCE_WINDOW_MS	3000	Window size for within-segment coherence embeddings
SPEAKER_COHERENCE_THRESHOLD	0.40	Adjacent-window similarity below which a segment is split at a speaker change
MIN_NEW_SPEAKER_MS	4000	Minimum speech needed to enroll a new speaker profile
MAX_SPEAKER_PROFILES_PER_TRACK	4	Maximum auto-enrolled speaker profiles per audio track
SORTFORMER_WINDOW_MS	15000	Sortformer processing window

Diarization values can be changed at runtime through PATCH /api/diagnostics/diarization/config; the database-persisted runtime config wins over these defaults.

ONNX Runtime threading

The lightweight diarizer runs two ONNX models on CPU, and ONNX Runtime sizes its thread pool from the host core count unless told otherwise. Left at that default both models spend most of their CPU on pool overhead rather than arithmetic, and ORT does not see container CPU quotas, so a big host or a small quota both go badly. These settings bound it.

Setting	Default	Meaning
DIARIZER_VAD_ONNX_THREADS	1	Intra-op threads for Silero VAD. It is an LSTM over one 512-sample frame with nothing to parallelize; the ORT default cost 5x the CPU for about 9% of wall time
DIARIZER_EMBED_ONNX_THREADS	min(4, cores / 2)	Intra-op threads for the WeSpeaker embedding model. Bounding the pool cuts CPU roughly 4x and costs some wall time
DIARIZER_EMBED_ONNX_SPIN	false	Let ORT spin-wait between embedding calls. Segments arrive seconds apart, so that spin is charged to the VAD; leaving this off measured no downside

Both thread counts are clamped to at least 1: ORT reads 0 as “use every core”, which is the default these settings exist to avoid. Raising DIARIZER_EMBED_ONNX_THREADS trades CPU for latency on the foreground transcript-import path; the live path has ample headroom either way.

Legacy agent toggles

AGENT_QUESTION_HUNTER_ENABLED, AGENT_CONSOLIDATED_ENABLED, AGENT_OBSERVER_ENABLED, AGENT_OPPORTUNITY_SCOUT_ENABLED, AGENT_ACTION_TRACKER_ENABLED, AGENT_SYNTHESIZER_ENABLED, and AGENT_OPPORTUNITY_SPECIALIST_ENABLED predate database agent configuration. The orchestrator primarily uses agent_configs rows; only some subtype flags are still consulted as fallbacks. Prefer the Admin panel over these env vars.

Model registry

MODEL_REGISTRY in backend/app/config.py is the central catalog the app selects models from (GET /api/models). Each entry declares its provider, required key, and capabilities:

Capability	Meaning
supports_text	Usable by text agents (analyst, objection handler, synthesizer, chat)
supports_batch_audio	Usable for batch/segment transcription and re-transcription
supports_live_audio	Usable as the live audio gateway

GET /api/models also returns runs_locally and endpoint_id on every entry (backend/app/routers/models.py): runs_locally covers the bundled ONNX models and models served by an on-prem endpoint, and is the flag the Privacy First UI admission keys off; endpoint_id is set for models served by a saved custom endpoint.

Current entries include Google Gemini text/audio models (gemini-3.8-flash, gemini-3.7-flash, gemini-3.5-flash-lite, gemini-3.5-flash, gemini-3-flash-preview, gemini-3.1-pro-preview, gemini-3.1-flash-lite, gemini-2.5-flash, gemini-2.5-flash-lite, gemini-2.5-pro), the live gateway model gemini-3.1-flash-live-preview, OpenAI text models (the GPT-5.6 family gpt-5.6-sol, gpt-5.6-terra, gpt-5.6-luna, plus gpt-5.5, gpt-5.4, gpt-5.4-mini, gpt-5.4-nano), OpenAI speech-to-text models (gpt-live-transcribe as a realtime-only gateway; gpt-4o-transcribe and gpt-4o-mini-transcribe usable both as realtime gateways and as batch transcription models; gpt-audio-1.5 and gpt-audio-mini as batch-only audio chat models), the openai-compatible placeholder for the legacy single self-hosted endpoint (text-capable, keyless, listed only while that legacy configuration is active), and key-free local models (local-whisper-base, local-whisper-large-v3-turbo, local-parakeet-tdt-0.6b and local-parakeet-tdt-0.6b-v3, supports_batch_audio only; local-parakeet-live and local-parakeet-v3-live, the experimental on-device live captioners, supports_live_audio only). A local ASR entry’s languages list names the ISO 639-1 codes it can transcribe; entries without one are multilingual or leave it to the provider. GET /api/models returns the list, and the fit test only recommends a model that suits the meeting language. With a language set, a model that lists it wins; when none does, the multilingual model with the higher multilingual_rank (turbo over Whisper Base) wins as long as it keeps up. No Local entry sets supports_text, so text agents need a provider key, the legacy placeholder, or a self-hosted endpoint model. Add new models by appending to the registry.
