Agent System

Analysis is performed by a small crew of agents coordinated by AgentOrchestrator (backend/app/services/agents/orchestrator.py). One orchestrator instance is created per live call inside the WebSocket handler. Text agents never see raw audio: they read recent transcript text from a shared in-memory buffer that the orchestrator maintains as final transcript entries are saved.

The agents

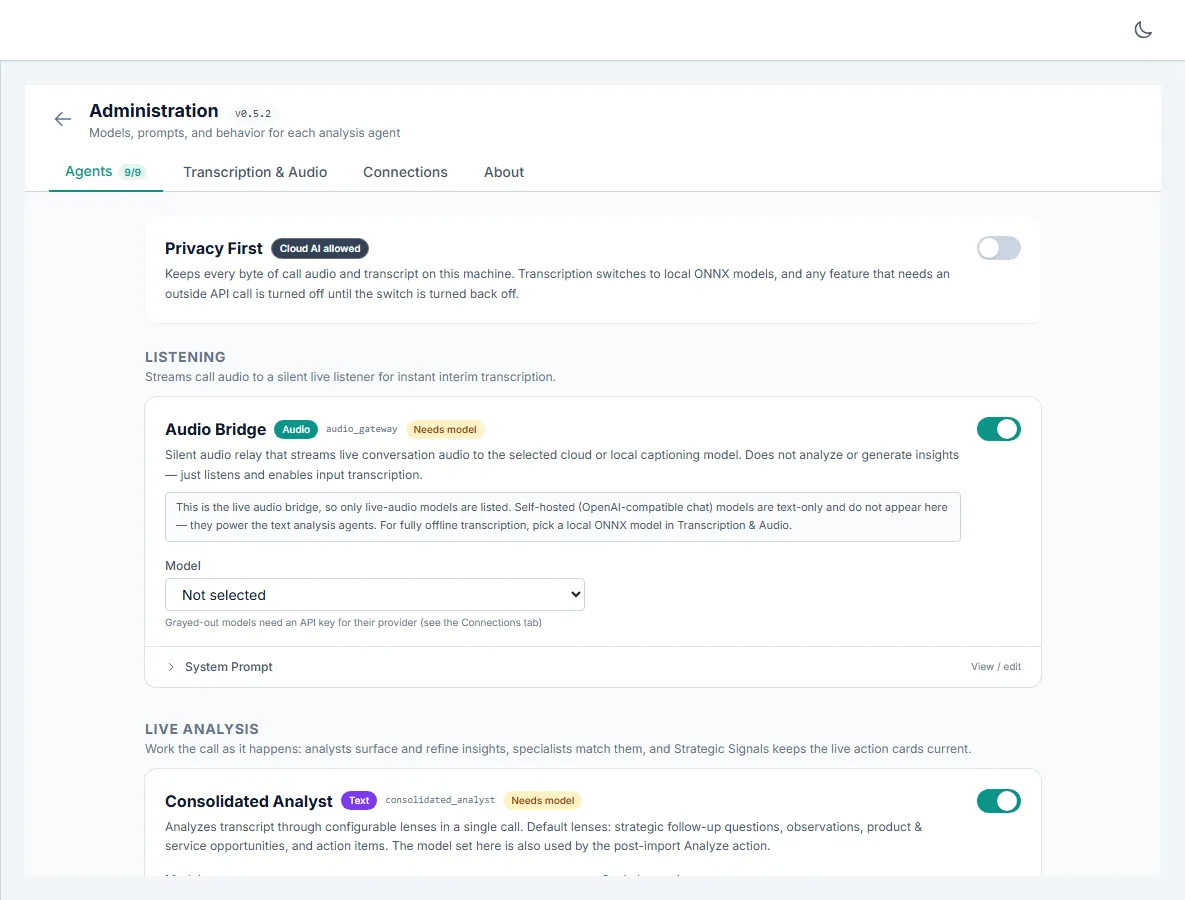

Every agent below is configurable from Admin -> Agents: its model, its system prompt, its trigger, and whether it runs at all.

On a fresh install every agent model starts as Not selected. Backchannel does not silently assign a cloud provider or rewrite selections when a key or self-hosted endpoint is added. The initial batch transcription model is the built-in local-whisper-base, which needs no API key. Choose explicit models for enabled agents before starting a call; Recommended marks a sensible provider-specific starting point, not a forced choice.

Agent slug	Type	Trigger	Code	Purpose
audio_gateway	audio	Continuous audio stream	backend/app/services/gemini_live.py / backend/app/services/openai_realtime.py / backend/app/services/local_live_captioner.py	Silent live listener that produces interim transcription: a cloud streaming session (Gemini Live or OpenAI Realtime) or the on-device local captioner (local-parakeet-live), chosen by the agent’s configured model
consolidated_analyst	text	Interval, default 40s, plus a final pass	backend/app/services/agents/consolidated_analyst.py	Single LLM call that can produce questions, observations, opportunities, and action items in one pass
objection_handler	text	Interval, default 10s, over only the last 90s of transcript	backend/app/services/agents/objection_handler.py	Low-latency objection scan; each objection insight pairs an immediate suggested response with the underlying concern and strategic angle
synthesizer	meta	new_insight / insight_updated events, 75s cooldown, 120s fallback	backend/app/services/agents/synthesizer.py	Reconciles and enriches saved insights, detects answered questions, may elevate an item’s type
opportunity_specialist	db	new_opportunity events, 55s cooldown, plus final matching	backend/app/services/agents/opportunity_specialist.py	Matches opportunity insights against configured knowledge sources
strategic_signals	meta	Interval, default 45s during the call	backend/app/services/agents/strategic_signals.py	Produces the live Signal, Risk, Next Question, Opportunity, and Action Cue cards in one call; evidence-linked insights are automatically upvoted
brief_meeting_lens	meta	Full End Call or on demand	backend/app/services/briefing_synthesis.py	Drafts the factual meeting record
brief_discovery_lens	meta	Full End Call or on demand	backend/app/services/briefing_synthesis.py	Drafts the broader discovery and sensemaking view
brief_arbiter	meta	After the post-call lens drafts	backend/app/services/briefing_synthesis.py	Reconciles the two drafts into the settled briefing

Default live-analysis intervals come from the seeded agent_configs rows, with runtime fallbacks in backend/app/config.py (TEXT_AGENT_INTERVAL_SECONDS, OBJECTION_HANDLER_INTERVAL_SECONDS, OBJECTION_WINDOW_SECONDS, SYNTHESIZER_COOLDOWN_SECONDS, SYNTHESIZER_MAX_INTERVAL_SECONDS, OPPORTUNITY_SPECIALIST_COOLDOWN_SECONDS) but the per-agent values stored in the database take precedence.

Cloud recommendations are grouped by role:

Role	Google	OpenAI
Audio gateway	gemini-3.1-flash-live-preview	gpt-live-transcribe
Consolidated Analyst, Principal Agent, Strategic Signals, meeting/discovery briefing lenses, Live Ask	gemini-3.7-flash	gpt-5.6-terra
Objection Handler	gemini-3.5-flash-lite	gpt-5.6-luna
Opportunity Specialist	gemini-3.7-flash	gpt-5.6-luna
Briefing Arbiter	gemini-3.7-flash	gpt-5.6-sol (high effort)
Batch transcription	gemini-3.5-flash-lite	gpt-4o-mini-transcribe

gpt-5.6-sol high effort is reserved for the Briefing Arbiter. Self-hosted recommendations come from the current Local Fit result instead of a static model name.

The three briefing agents never run on the live interval. Normal End Call runs them; End without briefing skips them; Generate Briefing runs them on demand. Live Strategic Signals is separately enabled and configured.

Each Strategic Signals cycle scores five candidate slots - Signal, Risk, Next Question, Opportunity, Action Cue, in that priority order - and the call screen panels the first three of them that have content. The rest are captured, not discarded, and so is every signal a previous cycle produced. Every cycle folds its items into signal_history on the live synthesis row, matched on section plus a normalized title, so a repeat raises count and moves last_seen instead of appending a near-duplicate. A theme that recurred is therefore visibly distinct from a one-off, and the briefing context built from the history carries each observation once rather than several times in different words. The list is capped at the newest SIGNAL_HISTORY_MAX_ENTRIES (200) entries.

During the call, the kept signals are listed in full under the insight list’s Strategic filter, newest first. The post-call briefing keeps its own History control over the same record.

The settled briefing leads with an at-a-glance summary strip (outcome, action, risk, and open-question counts plus synthesis status) and a Top Outcomes hero, followed by per-section cards that each carry their own icon and accent color. Items show owner and status chips, with the supporting “Why this matters” rationale collapsed behind a toggle, and strategic signals captured during the call are folded into the briefing as their own section (backend/app/services/briefing_synthesis.py, rendered by frontend/src/components/PostCall/BriefingView.tsx).

There is no standalone question-hunter agent: question generation is one enabled lens of consolidated_analyst. The question_hunter label only survives as a backward-compatible agent_source value on exported/saved question items.

Asking during a call

The call’s command bar opens in Chat mode. A question goes to POST /api/sessions/{id}/ask, which answers from the session’s current transcript, live insights, strategic signals, directives, and attached document filenames. The answer is saved as an asked insight, starred automatically so it pins to the top of the live feed and stays findable afterwards, and it is exported with every other insight.

This is not an agent: nothing schedules it, and asking never steers the running agents. The card’s Make directive action is the explicit way to turn a question into agent guidance.

The answering model is chosen from the chip in the bar. A valid saved choice is preserved; otherwise it stays Not selected. Asking without a selection keeps the draft and points the user to the model chip.

Configuration and overrides

Agent behavior is driven by database rows, not code constants:

• agent_configs – one row per agent slug with enabled, model_id, interval_seconds, and the prompt. Seeded on startup by backend/app/services/seed_agents.py and editable in the Admin panel (GET/PATCH /api/agents/{slug}, POST /api/agents/reset/{slug} to restore the seeded prompt).
• session_agent_overrides – optional per-session enable/disable rows (GET/PUT /api/sessions/{id}/agents), set from the pre-call view. A session override trumps the global flag for that call.

The WebSocket handler loads both tables when a call starts and hands the merged result to the orchestrator, so mid-call edits to global config apply to the next call, not the current one.

Model choice is per agent: each agent row references a model from the registry in backend/app/config.py, and text calls are routed to the right provider (Google, OpenAI, or a self-hosted OpenAI-compatible endpoint) by backend/app/services/llm.py. An enabled row with a blank model is blocked as no_model; runtime provider fallbacks do not override that explicit state.

On-device live captions (experimental, ALP-147). Setting the audio_gateway model to local-parakeet-live routes interim captions to local_live_captioner.py instead of a cloud gateway: it batches mic audio into short, non-overlapping ~3 s chunks and transcribes each with local Parakeet ONNX, so captions work with no cloud call (and under Privacy First). Latency is about one chunk (~3 s), not the cloud gateways’ sub-second partials, and it is CPU-heavy - it shares the machine with diarization and batch transcription - so run the fit test’s live-caption feasibility first. The supports_live_audio routing for the cloud gateways is unchanged.

Setting the audio_gateway agent to an OpenAI realtime transcription model (gpt-live-transcribe, gpt-4o-transcribe, or gpt-4o-mini-transcribe) switches the interim gateway from Gemini Live to the OpenAI Realtime API.

backend/app/config.py still contains legacy toggles such as AGENT_QUESTION_HUNTER_ENABLED and AGENT_CONSOLIDATED_ENABLED; the orchestrator primarily uses the database rows and only falls back to some subtype flags.

Local Model Fit Test

Running analysis on a self-hosted model (an on-prem OpenAI-compatible endpoint) only works if that model finishes each cycle before the next one is due. The Local Model Fit Test (Admin -> Transcription & Audio, backed by backend/app/services/local_fit.py) measures that keep-up speed – not answer quality.

For every on-prem, text-capable endpoint model it times one short-window and one long-window generate_text call after a warmup. Each timed call carries a representative agent’s real system prompt (the objection_handler prompt for the short window, the multi-lens consolidated_analyst prompt for the long window, pulled live from AgentConfig with runtime placeholders filled) plus a realistically sized transcript, so the measurement reflects production prefill rather than a toy prompt. It then scores each interval-driven agent against its cycle budget (AgentConfig.interval_seconds, or the seeded default):

• Keeps up (green) – the call finishes within half the budget.
• Tight (yellow) – it finishes within the budget but with little headroom.
• Too slow (red) – the call is slower than the budget; the agent would fall behind.

The short-window roles are objection_handler and opportunity_specialist; the long-window roles are consolidated_analyst, strategic_signals, and synthesizer. The three post-call briefing agents (brief_meeting_lens, brief_discovery_lens, brief_arbiter) are also scored, but they run once at call end – no live loop – so they are judged on an acceptable end-of-call wait (green <= 60 s, yellow <= 180 s) rather than a cycle budget, and are not editable. The audio gateway is not a text model, so it gets no cycle-budget score here; its on-device option (local-parakeet-live) is judged instead by the ASR section’s live-caption feasibility projection described below.

A local model is marked Recommended for a role only when the current endpoint and machine fit result is complete, current, and green for both the whole call and that role. When several pass, the lowest contention-adjusted latency wins (then model id for a stable tie-break). Selecting that recommendation is still an explicit user action; for live interval roles it also applies the fit result’s recommended interval through the existing Local Fit apply route.

Per-model budgets. A cycle budget is stored per agent and per model in AgentConfig.model_intervals (JSON {model_id: seconds}), so the analyst can run tighter on a fast model and looser on a slow one. The orchestrator’s _get_interval resolves the per-model budget for the agent’s assigned model first, then the global interval_seconds, then the seeded default. On the fit screen each budget is editable inline and “Apply recommended budgets” writes the per-model value via POST /api/diagnostics/local-fit/apply ({model_id, updates}).

Contention headroom. A real call is busier than the idle benchmark (recording, diarization, other apps), so an assumed-load slider (1x-3x, default 1.5x) scales measured latency before judging: effective latency = measured x contention. Verdicts and recommended budgets recompute live as the slider moves (recommended budget is about twice the effective latency).

The same card also measures transcription keep-up for the bundled local ONNX ASR models (local-whisper-base, local-parakeet-tdt-0.6b). “Run fit test” times them automatically on a synthetic speech-band clip (an estimate); upload or record real speech via POST /api/diagnostics/local-fit/asr for a precise number. It reports a real-time factor (processing / audio, green below half real time) plus an experimental live-caption feasibility projection (short-window RTF, very conservative) for the on-device captioner (local-parakeet-live, ALP-147) described above – check it before pointing the audio gateway at Parakeet Live.

To answer “where can this model actually go?”, the card shows, per model, the services it can fill (a Usable for list) and a What can run locally map of each AI service to its local option. Both are derived from the registry capability flags (supports_batch_audio, supports_text, supports_live_audio) by build_local_capabilities, so they never drift from how calls route: the bundled ONNX ASR models fill batch transcription, a self-hosted chat endpoint drives the analysis agents and meeting chat, and live interim captions list the on-device local-parakeet-live captioner as their local option, which is how captions keep running under Privacy First (the cloud streaming gateways remain the default). Document upload and summarization is the one AI service with no local option at all, because it calls the Gemini Files API rather than choosing a text model; configuring a self-hosted endpoint does not enable it. The card also auto-retries its summary fetch so it recovers on its own if the backend was still starting or an endpoint was connected after the page loaded.

Call-start capacity admission. The fit test measures each component alone; backend/app/services/capacity_admission.py (served at GET /api/diagnostics/capacity) checks whether the configured combination fits together. At call start it sums the measured demand of Sortformer diarization, local batch transcription, the local live captioner, and every enabled agent on a self-hosted model against the machine’s usable CPU cores and memory limit. Only persisted measurements count: any configured local component without one is named under not_modelled, so partial coverage can never read as a complete clean pass, and aged measurements annotate the verdict rather than blocking it.

Two features have no agent row of their own and borrow one instead. Post-import Analyze runs the model set on Consolidated Analyst, and Enhance Insights (the speaker-context pass after a speaker correction) runs the model set on Principal Agent. Only the model is borrowed, never the enabled toggle: both are buttons the user presses, so disabling either agent does not turn them off. That also means Privacy First judges them by destination like any other agent model. If the borrowed row is Not selected, the action reports that setup is required instead of falling back to a configured environment default.

Runtime activity and call health

When nothing is happening, the app says why. Each orchestrator keeps an in-memory ActivityRegistry (backend/app/services/agents/activity.py) that pushes agent_activity snapshots over the session WebSocket, coalesced to at most one every ~2 seconds; errors, newly blocked agents, and degradation changes emit immediately. A snapshot carries:

• Per-agent status – the state (waiting, running, failing, or blocked with a reason and remedy), when the last run started and how long it took, when the next run is due, the last outcome (insights saved, all items deduplicated as near-repeats, or nothing found), the last error (classified as truncated, timeout, refusal, or API error, each with a suggested remedy), and cumulative counts of runs, insights, deduplicated items, and errors.
• Setup visibility – enabled agents with no model report blocked_reason=no_model; the collapsed panel counts them as N need setup, and the expanded row points to Admin -> Agents.
• Call health – the interim gateway state, transcription job and failure counts, the diarization queue depth and shed-frame count, and a degraded flag with plain-language degraded_reasons (failed transcription segments, shed diarization audio, or a reconnecting gateway).

The live agent activity panel (frontend/src/components/ActiveCall/AgentActivityPanel.tsx) renders these snapshots during the call.

Insight lifecycle

1. A text agent proposes an item (question, observation, opportunity, objection, or action item) with a type and content.
2. The orchestrator deduplicates it against recent items using simple word-overlap similarity within a 300-second sliding window (orchestrator.py). Restatements cluster around a minute apart, so a shorter window let near-duplicates through and left the synthesizer to merge them afterwards at full corpus cost.
3. Surviving items are saved to the questions table (all item types share that table) and pushed to the browser as a question message. 3a. The synthesizer sees the session’s insights ordered by creation, but not all in full. A live insight (starred, or unanswered and touched within SYNTHESIZER_WORKING_SET_SECONDS, default 600) carries its full record; a settled one collapses to a stub of id, type, shortened text, and "settled": true, which merge and answer can still target. Sending every insight in full made this agent 48 percent of a measured meeting’s token bill and grew quadratically with call length. A cycle whose insights and transcript are byte-identical to the previous one skips the model call.
4. new_insight / new_opportunity events fan out to the meta agents: the synthesizer may update, answer, or elevate items (emitting insight_updated, question_answered, insight_elevated), and the opportunity specialist attaches offering matches to opportunities.
5. When the call stops, the orchestrator performs a graceful drain so in-flight agent work completes before the session is finalized.

Context provided to agents

Beyond transcript text, the orchestrator passes agents the session’s active directives (including mid-call directives sent over the WebSocket), document summaries produced at upload time, the speaker roster with roles and team/external tags, the meeting type and meeting context, and currently unanswered questions so agents can track what is already open. That open-question list is capped at the 24 most recent and is pruned when a question is answered, dismissed, or merged away – it used to prune only on answer, so it grew for the whole call and was billed to two agents on every cycle.

Each interval agent also skips its cycle outright when the transcript window is byte-identical to the one it last read, so a quiet stretch of a meeting costs nothing. The objection handler has always done this; the consolidated analyst and strategic signals now do too.

Meeting type and context edits made during a live call (PATCH /api/sessions/{id}) are pushed into the running agents immediately: the route looks up the session’s live orchestrator in an in-process registry and rebuilds the meeting-context prompt block for the consolidated analyst and objection handler, taking effect on their next cycle. A type change that turns on offering matching (client/sales or customer delivery) also wires the opportunity specialist mid-call. The registry is per-process, so this requires the single-worker deployment the app uses today.

Offering matching also gates the analyst’s opportunity lens. On a meeting type where matching is off, that lens is dropped from the prompt rather than filtered from the output, so it costs no tokens and produces no cards. A measured internal check-in had been spending 29 percent of its insights on opportunities that could never be enriched, because the specialist that enriches them is disabled for that meeting type. Switching the type mid-call recomposes the lens set on the analyst’s next cycle.
